體積小、結構緊湊而靈活的泡罩包裝機，具有較高的生產效率。

　　整體設計、加工制造符合GMP要求：

　　占地2平方米，每分鐘最高可生產240個板塊，新型的結構，最大限度滿足用戶要求。整機采用框架式全封閉結構，與藥品接觸材料選用優質不銹鋼，上料機構中的料盤、滾刷易于拆裝清洗、方便、快捷。

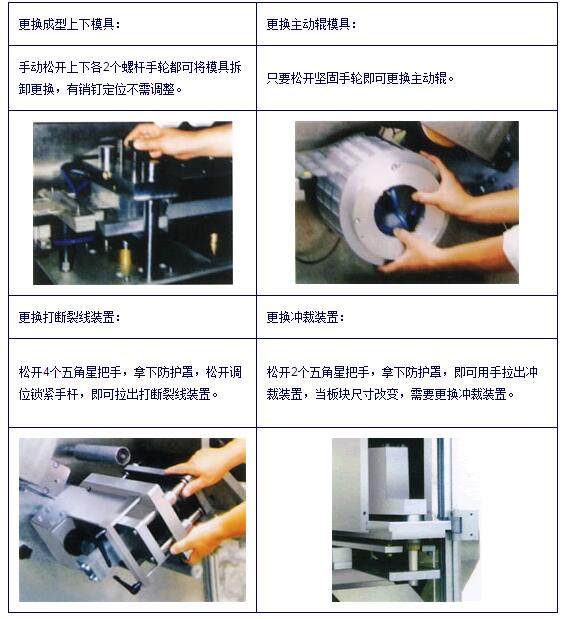

　　更換模具簡便快捷：

　　改變板塊尺寸，更換模具對機器進行調整時，不需要高級技工和特殊工具即可在短時間內快速實現。

　　主要器件和關鍵件采用國外知名品牌配套，保證工作平穩可靠。

　　PVC加熱器和熱壓輥加熱器的溫度控制準確，安全可靠，不會對包裝材料和藥品造成損傷。

　　整機電腦自動控制，運行速度無級調節。

　　無廢料橫邊沖裁節省包裝材料，沖裁前步進采用推板式步進，使得板塊平整，方便調整可靠。

　　DPH130泡罩包裝機具有非同尋常的特點：

　　本機預熱臺加熱板溫度場均勻，控制可靠。設定溫度與實際溫度誤差±2度，能適應于較為廣泛的熱塑成型材料：

　　PVC、PP、PVC-PVDC、PVDC-PE-PVDC等

　　特別是熱塑溫度范圍較窄的包裝材料，更能夠顯示出獨到之處。

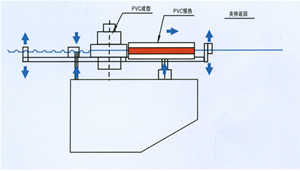

　　PVC步進方式，在PVC加熱板之前和成型臺之后兩處氣動夾特點，由于采用雙夾持步進，可防止加熱區內已經被加熱軟件的PVC片由于受快速牽拉移動而造成拉伸變形，影響泡罩質量。本機可以實現高速成型，又能保證良好的泡罩質量。

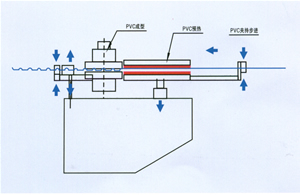

　　PVC下加熱板隨著形成臺模具的上下運動作相應的間歇運動，當PVC夾持移動時下加熱板處于下止點(上下加熱板有間隙)，減少PVC與加熱板接觸，PVC不粘片。

　　如果泡罩形狀復雜、成型深度較大，超過正壓吹氣成型的變形范圍，可以在成型臺增設成型輔助沖頭，變成機械＋氣動雙作用成型，確保泡罩壁厚均勻挺括。

　　可以隨意調整的棄填平臺，當更換板尺寸或改變包裝品種時，不需更換平臺，只作簡單調整，2分鐘即可完成。

　　隨時可以開機與停機，PVC板塊無停機痕跡。

　　外部各工作部件，凡是屬于運動件、加熱件均有防護罩保護，確保工作安全。

　　帶有板塊平整機構，使得板塊平整美觀，便于后續整理裝盒。

　　操作簡便易行，大部分調整件和模具更換不需要特殊工具即可短時間內完成。

　　傳動件及各個部件手工操作容易，極其方便地進行日常維修保養。

　　用戶訂貨時可以根據需要提出特殊配置

　　充填上料機：能用滾刷上料機、通用滾刷加長上料機、膠囊調頭上料機、高速專用(平片、膠囊)上料機。

　　控制部分：普通控制、人機界面控制。

　　自動檢測：光電自動檢測、攝像自動檢測。

　　平　　臺：普通型、加長型。

　　輸送機：1.5米輸送機。

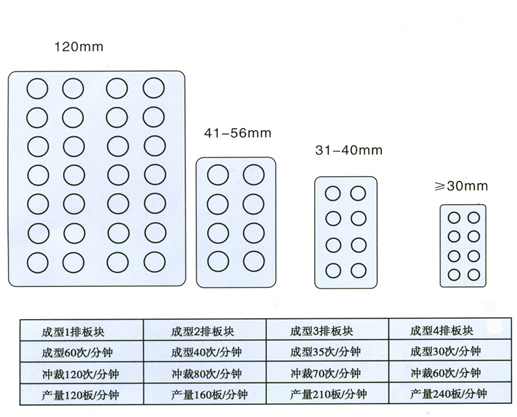

　　板塊排列，生產效率參考表

　　樣本中的照片及插圖僅表示DPH130普通型配罩，如果有特殊需要或不清楚之處請與公司技術部聯絡

技術規格如有變動，恕不另行通知。

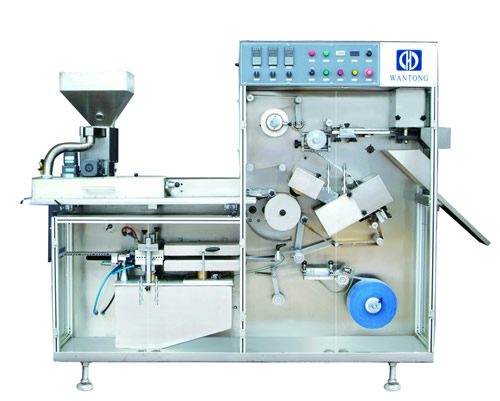

DPH130B Aluminum-plastic Blister Packing Machine

　　With small size and compact configuration，the blister packing machine is flexible with higher production efficiency。

　　Designed and manufactured as the requirements of GMP:

　　Covered 2 square meters, the machine can product 240 pieces plates per minute with its new-type structure to meet the demand of customers at large. Adopted totally-enclosed frame structure, the machine selects the high quality stainless steel to contact with the drugs, and it dismantles and cleans the charging tray and roll brush of the feeding mechanism conveniently and quickly。

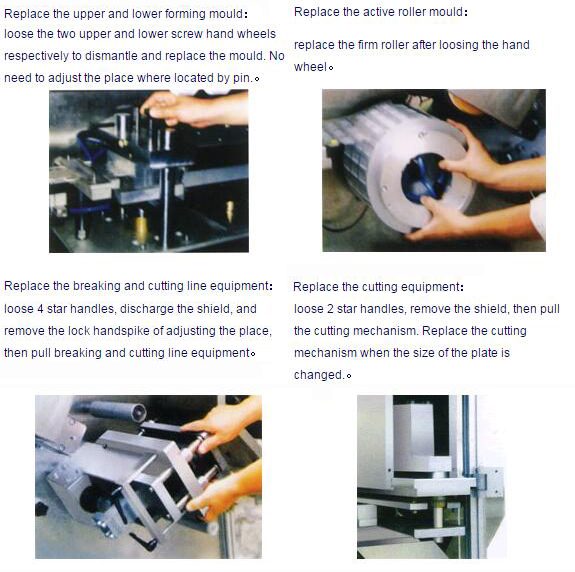

　　Replace the mould easily and quickly：

　　Adjust the machine without senior technicians and special tools after changing the size of plates and replacing the mould. The adjustment can be fulfilled in a short time.。

　　Select the parts of foreign famous brands as the chief parts and fittings to ensure the work stable and reliable.。

　　The temperature control to PVC heat exchanger and the hot-pressing roller heat exchanger is exact and reliable without any harm to the packing material and the medicine。

　　The whole machine is controlled by the computer, and its speed is regulated sleeplessly

　　Horizontal sides cutting without scrap can save packing material. Adopting push-type stepping as the front stepping of blanking makes the plate flat and easy to adjust as well as reliable.

　　DPH130 Froth-Cover Packaging Machine has excellent features：

　　The heating plate on the preheating table of this machine is characterized by even temperature field and reliable control, the error being ±2 degrees between set temperature and actual temperature. It is applicable to extensive hot forming materials;

PVC、PP、PVC-PVDC、PVDC-PE-PVDC

　　especially packaging materials of a narrow range of hot forming temperature to show its uniqueness. 。

　　PVC stepping mode: it features an air-powered clamping device on both before PVC heating plate and behind forming table. The adoption of double clamping stepping prevents PVC chip in the heating area from tension and deformation as a result of rapid stretching and moving, which would affect the quality of froth-cover. This machine can achieve high-efficient forming with a guaranteed quality of forth cover.

　　The lower heating plate makes intermittent motion along with the forming table moves upward and downward. When PVC clamping device moves, the lower heating plate is at bottom dead center (there is a gap between the upper and lower heating plates), minimizing PVC’s direct contact with the heating plate, thus PVC is not sticky.

　　If the froth-cover is complicated in shape and forming depth, beyond the distortion range of blow forming with positive pressure, then a forming auxiliary punch can add to forming table, turning into mechanical and pneumatic forming to ensure the thickness of froth-cover is stiff and smooth.

　　Infilling platform can be easily adjusted. There is no need to change the platform when the size or packaging type is to be replaced. The adjustment can be easily done in two minutes.

　　The machine can be turned on and off at any required time without the trace of shutdown at PVC plate.

　　Those exterior moving and heating parts are all protected by protective hoods to ensure their safety.

　　With a plate smoothing function, make the plate smooth and beautiful and also convenient to further tidy and pack.

　　Easy operation, most adjusting parts and moulds can be replaced in a short time without the use of special tools.

　　Transmission parts and all other parts are easy to operated manually and convenient to keep maintenance on a daily basis.

　　Consumers may require special configuration based on their own needs when making an order.

　　Filling feeder: variety includes roller brush feeder, common roller brush extended feeder, capsule adjusting feeder and high speed (slice, capsule) feeder.

Control part: general control, man-machine interface control

　　Automatic detection: photoelectric automatic detection, photographic automatic detection.

　　Table: common type and extended type

　　Conveyor: a conveyor of 1.5 meters.

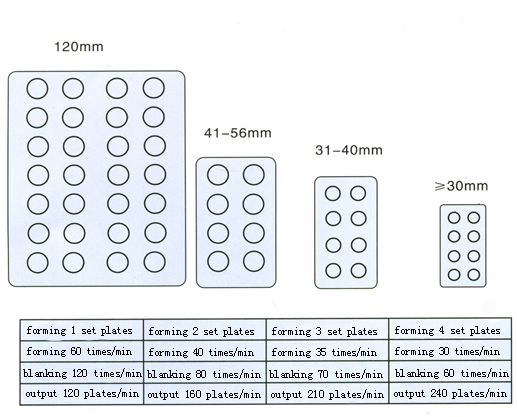

　　Reference Table of Plate Arrangement and Productive Efficiency

　　Photos and illustrations of the sample only show DPH130 common type mask matching. Please contact the technology department of the company for special requirements or problems.

　　Technological specifications are subject to change without prior notice.
