特點:

　　板式正壓吹塑成型、輥式熱封、包裝效率高。

　　可與通用上料機、掉頭上料機、圓盤上料機配套使用

　　PLC 控制，無級變頻調速，調整范圍廣泛，傳動噪音低。

　　人機界面裝置，操作簡單明了。

　　自動打批號、壓斷裂線。

　　主要元器件均采用進口。

　　整機采用全封閉方式，符合GMP要求。

　　適用范圍:

　　各種規格的膠囊、素片、糖衣片、膠丸及異型片，巧克力豆，口香糖等小食品。

　　技術參數:

　　最大成型深度： 15mm

　　沖裁次數： ≥60次/分

　　包裝效率：≥180板/分

　　包裝材料：PVC190×0.25mm PTP190×0.02mm

　　最大步進距離：204mm

　　耗氣量：300L/min

　　耗水量：4L/min

　　電源總功率：5.5kw

　　電壓：380V/50Hz

　　外形尺寸（長×寬×高）：2285×880×1750mm

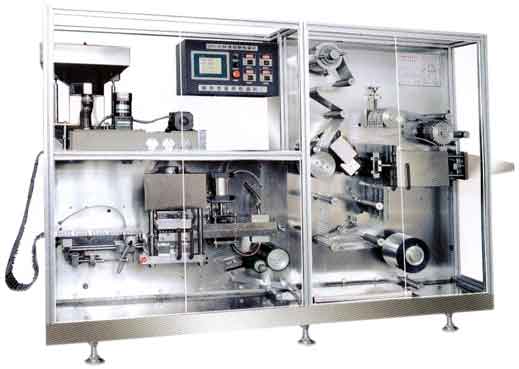

Type DPH190O Roller—plate Blister Packing Machine

　　Features:

　　Board-type pressure blow molding, roller-type heating seal, high packaging efficiency

It can be used with general feeding machine, turn-around feeding machine and disc feeding machine.

　　It is controlled by PLC, and ensures frequency variation and stepless speed with wide range and lower noise when in operation。

　　Human-machine interface device helps convenient operation.

　　Automation beating batch number and pressing breaking lines

　　Main components are imported.

　　The machine is totally-sealed, which accords with the GMP standard.

　　Application scope:

　　It applies to different specifications of capsules, white pills, sugar-coated pills, caps, special pills, marble chocolate, and chewing gum etc.

　　Specifications:

　　1.Max forming depth: 15mm

　　2.Cutting frequency: ≥60times/Min

　　3.Packaging efficiency: ≥180 plates/Min

　　4.Wrapper: PVC190×0.25mm PTP190×0.02mm

　　5.Max step-over: 204mm

　　6.Air consumption: 300L/min

　　7.Water consumption: 4L/min

　　8.Total power supply: 5.5kw

　　9.Voltage: 380V/50Hz

　　10.Dimension (Length × Width × Height): 2285×880×1750mm
